Wi-Spy Lucid
Tri-band spectrum analyzer 2.4, 5, 6 & 7 GHz bands
Complete Bundle
All-in-one Troubleshooting
$4,399USD
Every tool you need to see, find, and fix Wi-Fi issues. Full spectrum visibility, packet capture, device location, and professional reporting in one complete kit.
Trusted by Cisco, Amazon, UPS, Rivian, and 1000+ WLAN professionals
What's included
What’s included in the Complete Bundle
Chanalyzer
Spectrum analyzer software with report builder
Device Finder Antenna
Tri band directional antenna
MetaGeek App
Advanced packet analysis
Oscium Nomad
4-radio packet capture 2.4, 5, 6 & 7 GHz simultaneous
Chanalyzer MetaCare
Software + Accessory
Capabilities
What you can do

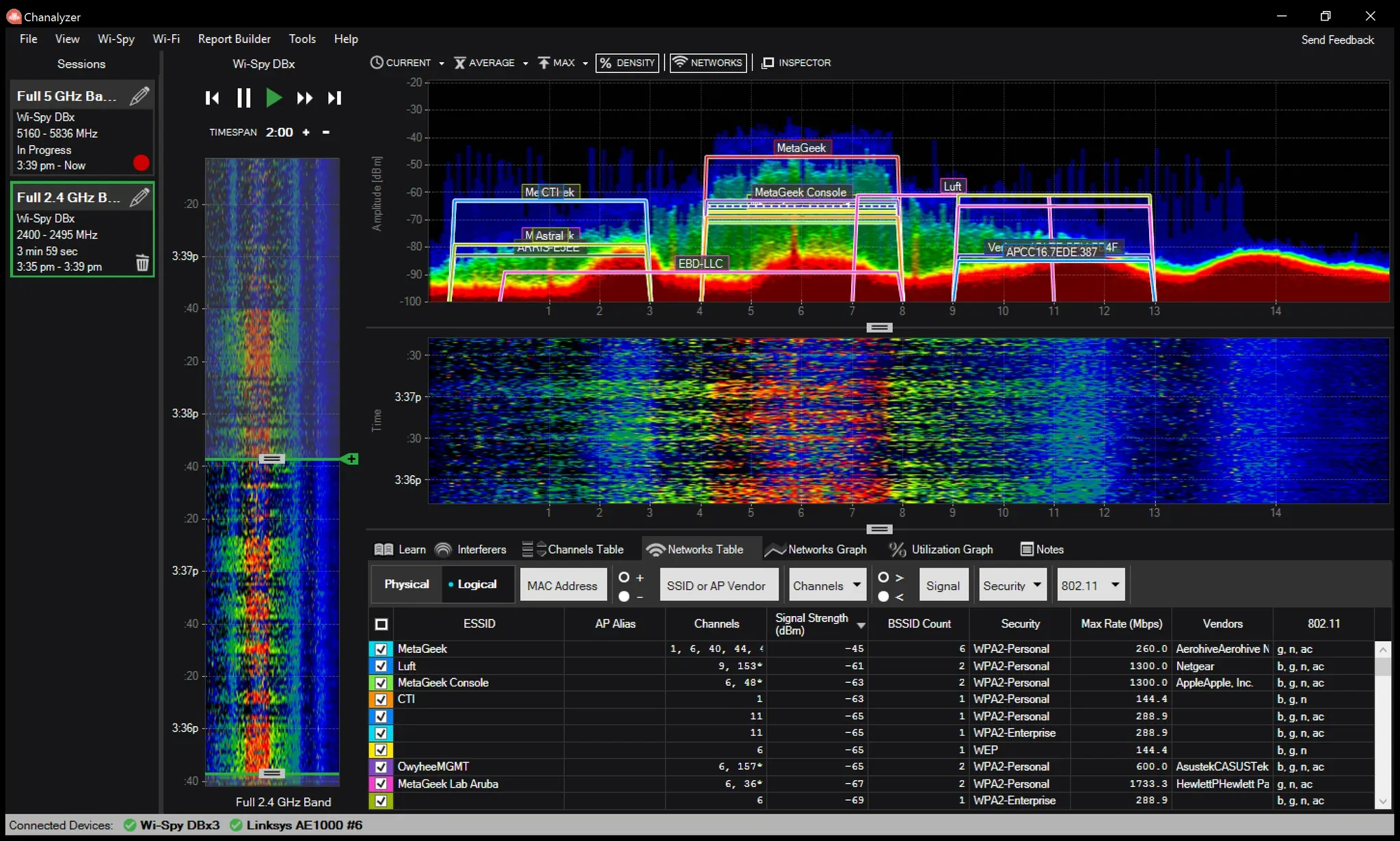

Tri-Band Spectrum Analysis
Wi-Spy Lucid gives you full visibility into 2.4, 5, and 6 GHz bands. Paired with Chanalyzer's visualization tools, you'll finally see your network clearly in real time.
Pinpoint and Eliminate Interference
With the Device Finder Antenna, you're not just looking for interference, you're hunting it down. This directional antenna focuses your efforts to zero in on the exact source of disruptions.

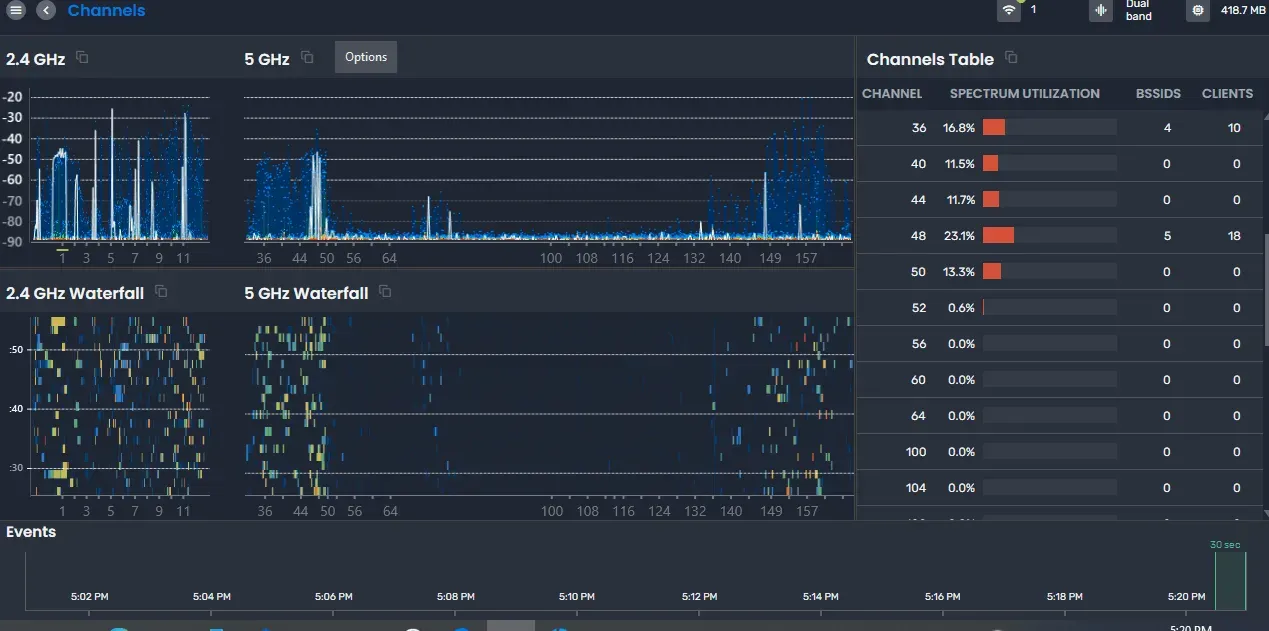

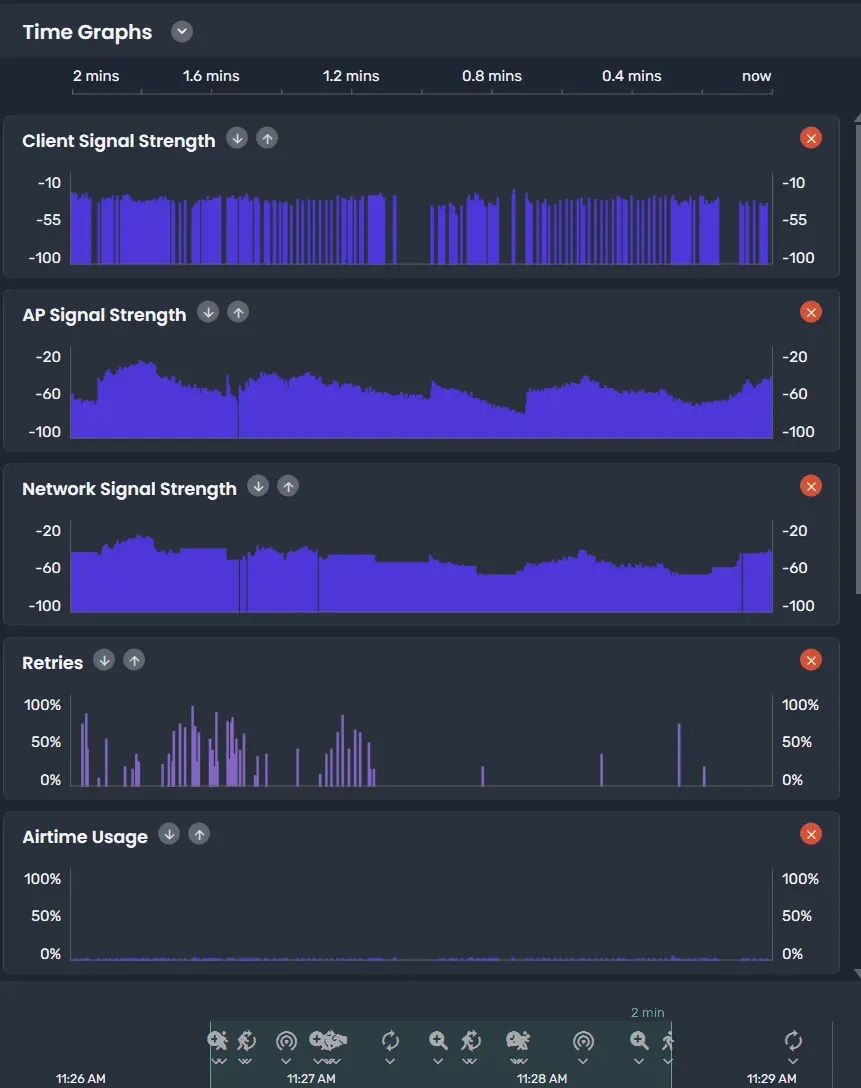

Live Packet Analysis
Oscium Nomad and MetaGeek App together capture and parse Wi-Fi 7 packets across four channels simultaneously. Identify airtime congestion, sticky clients, and roaming issues in real time.
Effortless Reporting
Turn your findings into compelling PDF reports with Report Builder. Add snapshots, tables, and descriptions to communicate clearly with clients and management. View Sample Report
Advantage
Why Choose the Complete Bundle
Advanced Tri-Band Spectrum Analysis
Wi-Spy Lucid gives you full visibility into 2.4 GHz, 5 GHz, and 6 GHz (Wi-Fi 7) bands, monitoring both Wi-Fi and non-Wi-Fi activity with pinpoint precision. Paired with perpetual access to Chanalyzer's visualization tools, it's like putting on glasses after years of squinting, you'll finally see your network clearly in real time.
End-to-end Wi-Fi troubleshooting
The Complete Bundle combines the Wi-Spy Lucid for tri-band spectrum analysis, Chanalyzer for deep desktop insights, the MetaGeek App for quick mobile checks, Oscium Nomad for packet and performance testing, and Device Finder for locating troublesome transmitters. Together, these tools create an end-to-end workflow that helps technicians diagnose interference, verify network designs, and resolve Wi-Fi issues faster.
Specifications
Technical specifications
Wi-Spy Lucid
HARDWARE- Frequency range: 2.2 GHz to 7.25 GHz
- Frequency resolution: 25 KHz
- Amplitude range: -95 dBm to -5 dBm
- Filter bandwidth: 58 KHz to 812 KHz
- Tri-Band Omni-directional antenna included
- Antenna port: RP-SMA
Chanalyzer with Report Builder
SOFTWARE- Windows 8 and newer
- Mac OSX 10.14 Mojave and newer (Chanalyzer Lite only)
- 2.4 to 2.5 GHz range, 390 KHz resolution
- 5.145 to 5.860 GHz range, 1.396 MHz resolution
- 5.925 to 7.125 GHz range, 1.786 MHz resolution
- PDF report export with snapshots and tables

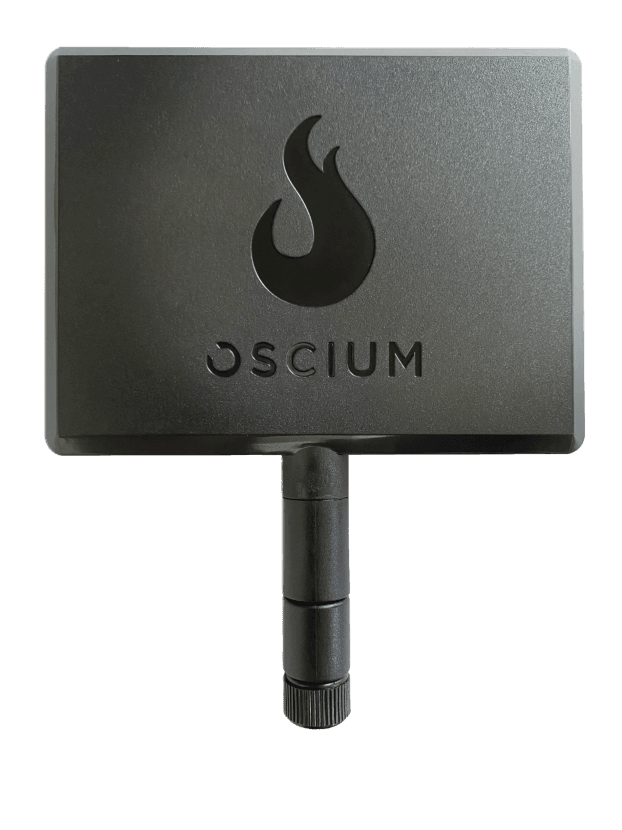

Device Finder Antenna
HARDWARE- Locate exact location of Wi-Fi interference
- Tri-Band Wi-Fi Interference Finder (2.4, 5, 6 GHz)
- Directional antenna design
- RP-SMA connector, works with Oscium and non-Oscium products
- 6 dBi gain
- Boost repeater or AP signal to extend range
Oscium Nomad
HARDWARE- Four Wi-Fi 6E radios, eight Wi-Fi antennas
- Supports 2.4, 5, and 6 GHz bands (Wi-Fi 7 ready)
- Channel widths: 20, 40, 80, and 160 MHz
- Simultaneous capture on up to four channels
- Built-in 7500 mAh (27.75 Wh) battery, up to 4 hours of survey time
- Dimensions: 14 x 12.5 x 3.5 cm (5.5 x 5 x 1.4 in), 415 g (14.75 oz)
- USB-C connection
MetaGeek App
SOFTWARE- Wi-Fi 7 (802.11be) protocol support
- Layer 2 wireless analysis across 2.4, 5, and 6 GHz bands
- Real-time packet capture with WYSIWYG feedback
- Multi-layer pie chart traffic visualization
- Automatic event detection (roaming, retries, association failures)
- PCAP export to Wireshark and OmniPeek
- Pairs with Oscium Nomad for four-channel simultaneous capture
1 Year Chanalyzer MetaCare
SOFTWARE ASSURANCE- Free Chanalyzer software updates while subscription is active
- Direct technical support from MetaGeek experts
- Bug fixes and new feature releases
- Activates when you first activate Chanalyzer
- Renew annually at my.metageek.com after the first year

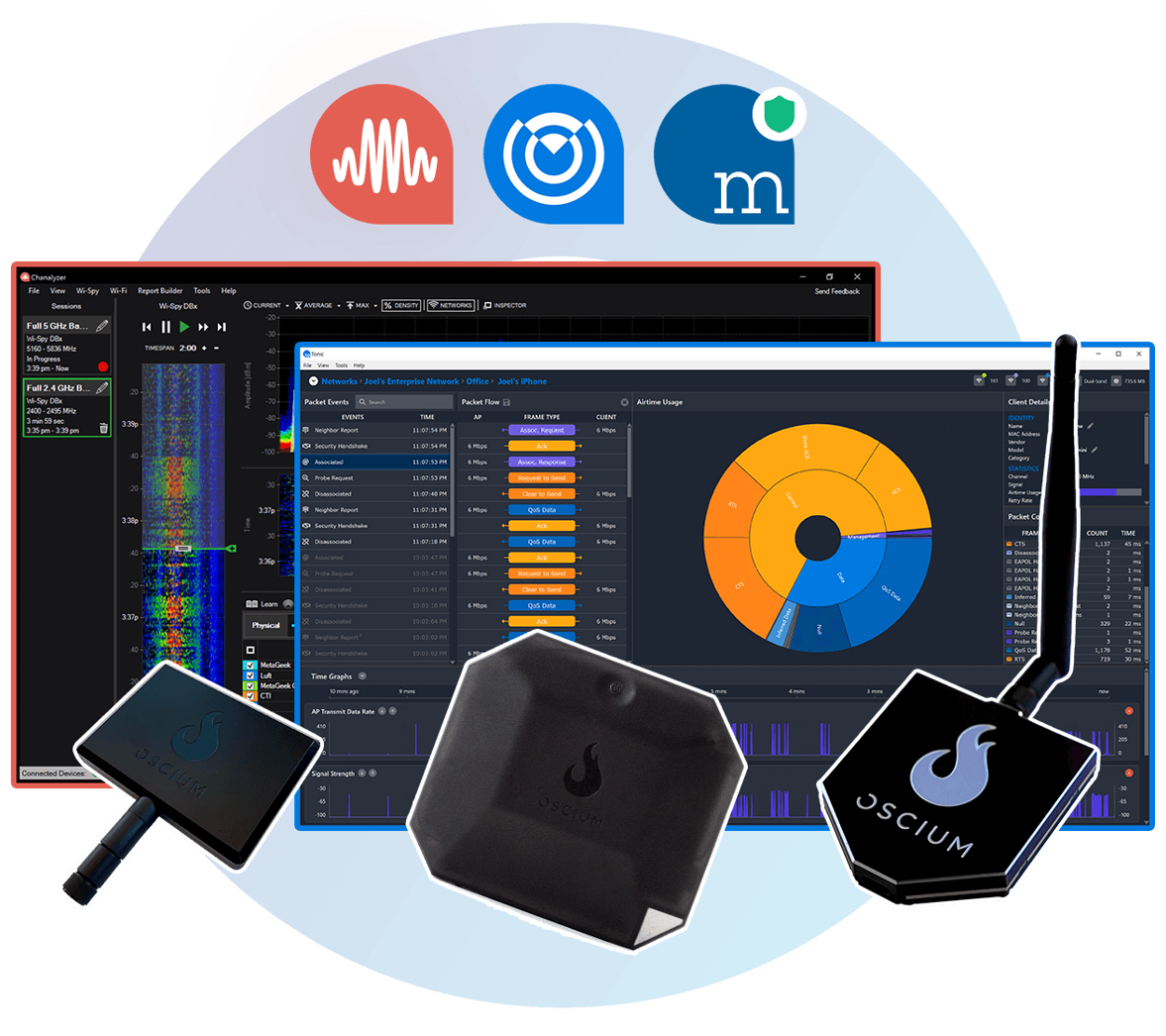

The Complete Bundle combines five tools into one workflow: Wi-Spy Lucid tri-band spectrum analyzer, Chanalyzer with Report Builder, Device Finder directional antenna, Oscium Nomad packet capture device, MetaGeek App software, and 1 year of MetaCare for both Chanalyzer and MetaGeek App.
Compare
Find your bundle
Currently viewing
Complete Bundle
Full spectrum + packet workflow
$4,399
Everything in Spectrum
Everything in Packets
Full troubleshooting workflow
Best for:Full-service WLAN professionals
Spectrum Bundle
See and fix interference issues
$1,599
Wi-Spy Lucid
Chanalyzer 5 + Report Builder
Device Finder Antenna
1yr MetaCare
Best for:Consultants, site surveys, interference hunting
Packets Bundle
Analyze traffic and troubleshoot devices
$2,799
Oscium Nomad
MetaGeek App
1yr MetaCare
Best for:Enterprise teams, roaming issues, client debugging
